How a gabion retaining wall is designed in India: which codes apply, the proportions, the loads, the stability checks with their factors of safety, and typical sections.
There is no single “IS code for gabion wall design”. In India the work is split across a handful of documents, and a complete design uses all of them:
| Code | What it covers | Use it for |
|---|---|---|
| IRC:SP:116-2018 — Guidelines for Design and Installation of Gabion Structures | Design inputs, proportions, loads, stability checks and factors of safety, materials, installation | The design calculation |
| IS 14458 (Part 6):2020 — Retaining wall for hill area, construction of gabion walls | Walls up to 6 m in hills: proportions, stone, lacing, backfill, a porosity check by weighing | Hill-road walls and site practice |
| IS 14458 (Part 1):1998 — Selection of type of wall | When to choose a gabion wall | Justifying gabions on poor foundations or seepage |
| IS 14458 (Part 7):2022 — Peripheral reinforced gabion walls | Gabion walls tied to grouted steel pipes | Loose, saturated or compressible slopes |
| IS 16014:2024 | The gabion boxes: mesh, wire, zinc and PVC coating, sizes, tolerances | The material specification in the BOQ |
| IRC:6, IRC:78, IS 1893 | Traffic surcharge, extent of backfill, seismic acceleration | Loads referred to by IRC:SP:116 |
So: design to IRC:SP:116, build hill walls to IS 14458 Part 6, and specify the boxes to IS 16014. The rest of this guide follows that order.
Buying gabion boxes? We make it at our own works in West Bengal and deliver across India, Bhutan and Nepal. Ours start from ₹125 per sq m of mesh, incl. GST, ex-works (see rates).
Get our rate on WhatsAppSend the size, quantity and delivery place, or call +91 98300-95187

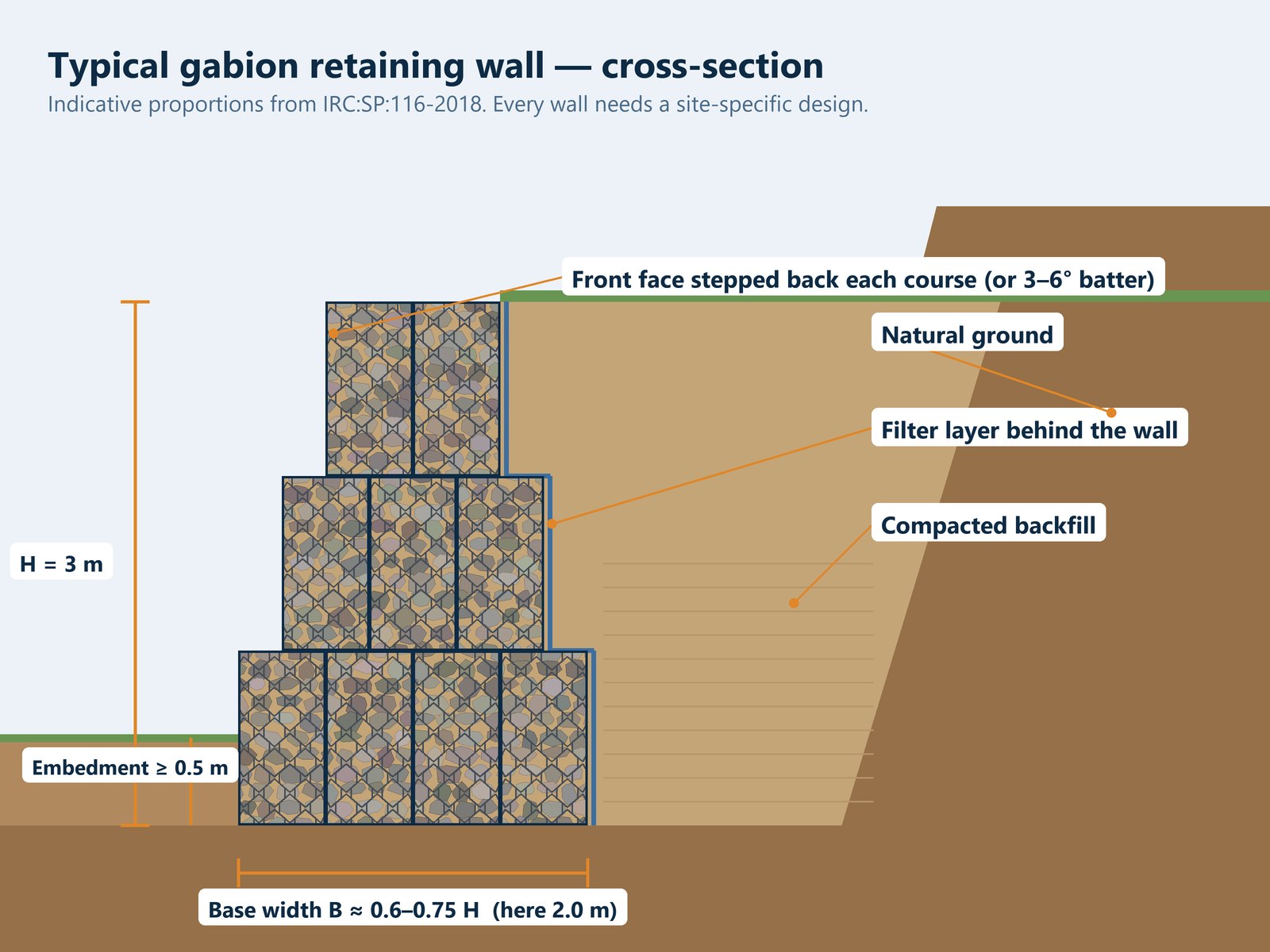

A gabion retaining wall is a gravity wall: its own weight — wire mesh boxes packed with stone — resists the push of the soil behind it. It has three working parts: the gabion boxes (usually 1 m or 0.5 m high, laced together), the stone fill, and a filter and compacted backfill behind the wall.
